Squadron Round

IP40
Water Resistance
18
Impact Protection

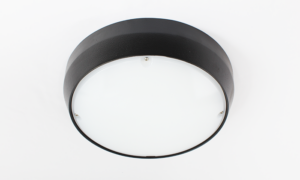

Round anti-ligature bulkhead built with a heavy die-cast aluminium base. Offers frosted or stippled diffuser options, plus optional grille or eyelid covers for tailored light control. Includes a removable LED gear tray and stainless security screws. IP65 and IK10 rated, ensuring durability for custodial, healthcare, rail, and public spaces where resilience and safety are critical.
Sectors:
Secure Healthcare, Custodial, Public Space, Rail & Transport, Urban Residential
Colour Options:
RAL 9005 Black, RAL 9016 White, RAL 7024 Grey, Custom RAL Colour
Squadron Round
Specifications
  • Ingress Protection Rating:IP40
  • External Mechanical Impact:18
  • Body / Housing:Heavy Die Cast Aluminium
  • Diffuser:Frosted
  • Mounting Option:Ceiling, Wall
  • Anti Ligature:Yes
  • Paint / Finish:Fine Texture Powder Coating
  • Lamp Life:50,000h
  • Lamp Type:LED

Technical Information.

Standard Fixing Detail.
1 qty x 20mm ø Back Body Centre Cable Entry Hole
Optional Back Body Fixing Holes (On Request)
Linear LED Data.
Code
Lumens HE
Lumens HO
mA
lm/W
W
Colour Temp
Ra
Dims
Weight
SQDR1.2
1250lm
100
116
10.6
3000/4000K
>80
325
4.0
SQDR1.7
1750lm
200
119
14.7
3000/4000K
>80
325
4.0
SQDR2.1
2100lm
250
125
16.7
3000/4000K
>80
325
4.0
SQDR2.5
2550lm
350
132
19.3
3000/4000K
>80
325
4.0
SQDR3.0
3000lm
500
129
23.2
3000/4000K
>80
325
4.0
SQDR4.0
4000lm
700
121
33.0
3000/4000K
>80
325
4.0
LED Life-time 50,000h L80/B10 (@ 25°C - 40°C)
RGB Colour Change LED & ** Tuneable White LED Options.
